- 品 牌Excalibur Systems
- 所属分类总线开关
- 商品编号G586B4AF47A434

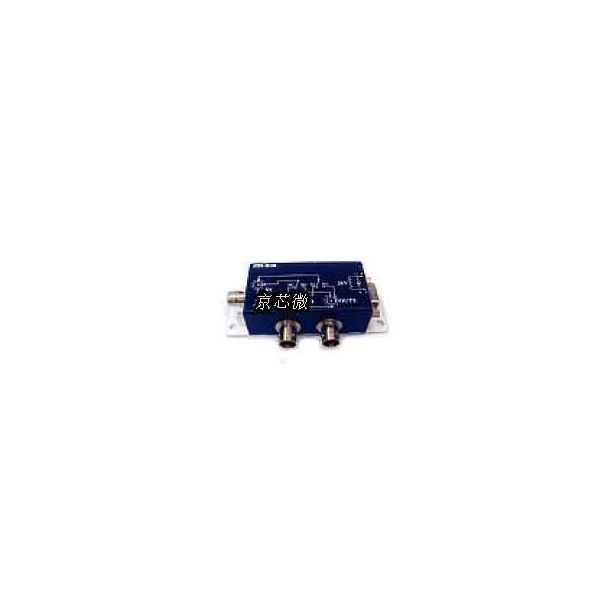

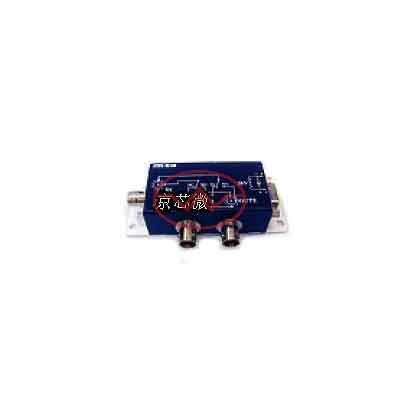

- 型 号ESI-R20
总线开关可以实现系统架构的重新配置。这种重构是在测试环境中可以仿真多级火箭发射、模拟开关或开启一段新的总线接口。部分型号内含TTL驱动电路，可以直接由一台计算机驱动。
ON / OFF Switches通/断开关
| 1. MECHANICAL SPECIFICATIONS: | |
| 1.1 | DESIGN AND CONSTRUCTION-THE COUPLER SHALL WITHSTAND THE STATIC HANDLING, INSTALLATION, AND OPERATIONAL SERVICE AS SPECIFIED HEREIN. THE COUPLER SHALL CONFORM TO THE APPLICABLE REQUIREMENTS OF MIL-STD-4554 FOR PROCESS, PARTS AND MATERIALS, DESIGN CONSTRUCTION AND WORKMANSHIP. THE ENCLOSURE SHALL BE A METAL ENCLOSURE |
| 1.2 | CONNECTORS: BJ770 (TROMPETER OR EQUIV.) J1 J2 J3; P1 IS A DB9P CONNECTOR (PIN 1, IS POSITIVE; PIN 3, IS THE TTL CONTROL VOLTAGE AND PIN, 5 IS GROUND) MATING CONNECTOR FOR REFERENCE: PL75 (TROMPETER OR EQUIV.) |
| 1.3 | MATERIAL: ENCLOSURE: ALUMINUM .050 THK. MOUNTING PLATE: ALUMINUM .080 THK. BLUE ENAMEL (POWDER COATED) |
| 2. TEMPERATURE: | |
| 2.1 | OPERATING TEMPERATURE: -40℃ TO + 70℃ |
