EXC-4000VME/xx, EXC-4000VXI/xx cards & M4K1553Px(S) module

型号EXC-4000VME/xx, EXC-4000VXI/xx cards & M4K1553Px(S) module
制造商 Excalibur Systems
描述
应用 MIL-STD-1553
服务支持

单价（含13%增值税)
销售价： 来电联系

供货信息

线上库存 0
线下库存联系我们

单位

线上库存	0
线下库存	联系我们
单位

商品详情

品牌Excalibur Systems
所属分类板卡
商品编号G58B7E0125A60F
型号EXC-4000VME/xx, EXC-4000VXI/xx cards & M4K1553Px(S) module

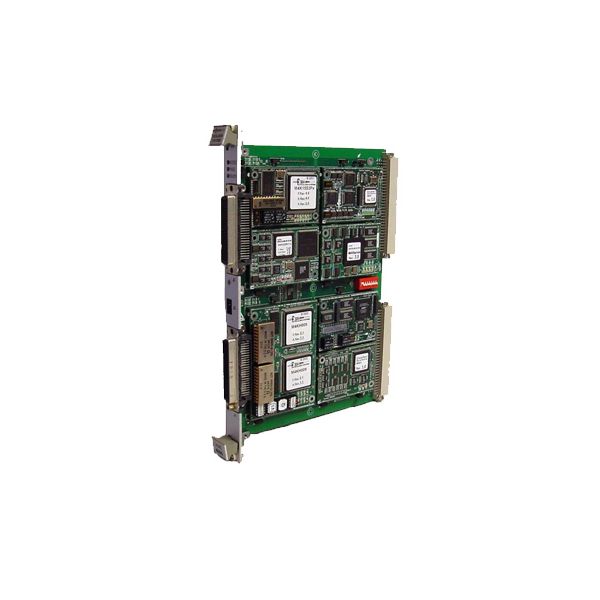

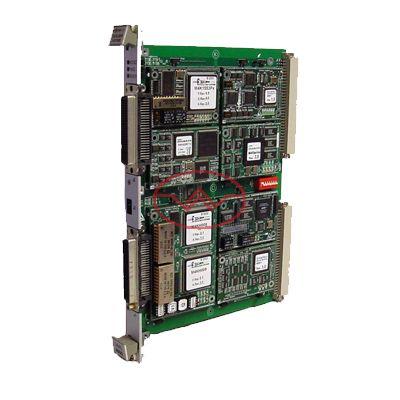

Tx M4K1553PxSThe EXC-4000VME/xx and EXC-4000VXI/xx cards for VME & VXI systems supports up to eight dual redundant 1553 channels using the M4K1553Px(S) module and is compatible with all common variations of MIL-STD-1553 (A, B).
 Multi Function
 Each channel using the M4K1553Px (RT validated) module operates simultaneously as a Bus controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. In addition, error injection (BC and RT modes) and error detection (all modes) are supported on each channel.
 Single Function
 Each channel using the M4K1553PxS module operates either as a Bus Controller, Remote Terminal, or Bus Monitor.
 NOTE: the M4K1553PxS module is NOT compatible to the M4K1553MCH module or any of the MCH family of cards.
 The EXC-4000VME/xx and EXC-4000VXI/xx are supplied with C drivers (including source code), Merlin+ Windows software and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.
 Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.
 Ordering Information:
 <table width="930px" border="1" cellspacing="1" cellpadding="1" style="color:#808080; margin:8px 0px; border:1px solid #ccc;"><tbody><tr><td style="padding:4px 20px; width:360px;">Part Number</td><td style="padding:4px 20px; width:490px;">Description</td></tr><tr><td style="padding:4px 20px;">EXC-4000VME/xx</td><td style="padding:4px 20px;">Multi-protocol interface for VME compatible systems B-size board.</td></tr><tr><td style="padding:4px 20px;">EXC-4000VXI/xx</td><td style="padding:4px 20px;">Multi-protocol interface for VXI compatible systems C-size board, complete with shield</td></tr><tr><td style="padding:4px 20px;">Fx M4K1553Px</td><td style="padding:4px 20px;">MIL-STD-1553 interface module: supports BC, multiple RTs, BC/Concurrent-RT and BM modes.</td></tr><tr><td style="padding:4px 20px;">Tx M4K1553PxS</td><td style="padding:4px 20px;">MIL-STD-1553 interface module: supports BC, RT or BM modes. (RT Validated-Single Function)</td></tr><tr><td colspan="2" style="padding:6px 20px;"> Note:  <div style="text-indent: 24px; display: inline !important;">“xx” specifies the modules ordered with the carrier board. </div>"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option. "-001" added to the end of the part number specifies conformal coating option.</td></tr></tbody></table>
