EXC-1553PMC/Px(S) & EXC-1553ccPMC/Px(S)

型号EXC-1553PMC/Px(S) & EXC-1553ccPMC/Px(S)
制造商 Excalibur Systems
描述
应用 MIL-STD-1553
服务支持

单价（含13%增值税)
销售价： 来电联系

供货信息

线上库存 0
线下库存联系我们

单位

线上库存	0
线下库存	联系我们
单位

商品详情

品牌Excalibur Systems
所属分类板卡
商品编号G58B7DDB69241F
型号EXC-1553PMC/Px(S) & EXC-1553ccPMC/Px(S)

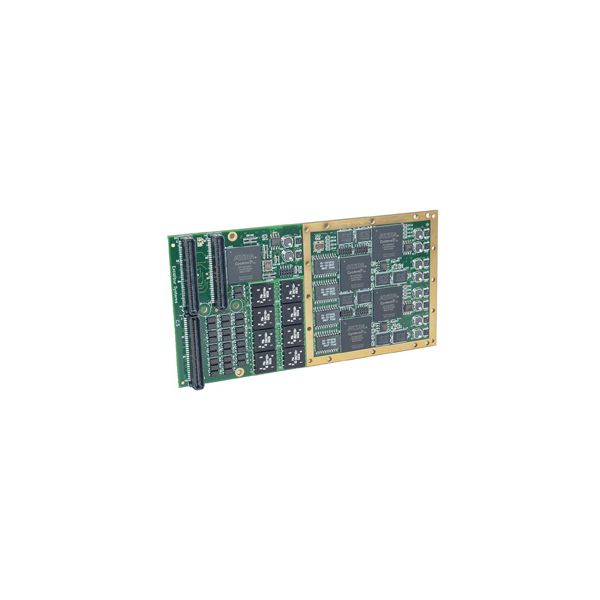

MIL-STD-1553, conduction cooled, interface board. Supports up to 4 multi function channels.The EXC-1553PMC/Px(S) and EXC-1553ccPMC/Px(S) are multi-channel (up to four) MIL-STD-1553 interface boards for PCI Mezzanine Card compatible computers.
 Multi Function
 Each channel operates simultaneously as a Bus controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. In addition, error injection (BC and RT modes) and error detection (all modes) are supported on each channel.
 Single Function
 Each channel operates either as a Bus Controller, Remote Terminal, or Bus Monitor.
 NOTE: PxS is NOT compatible to the MCH family of cards.
 The EXC-1553PMC/Px(S) and EXC-1553ccPMC/Px(S) are supplied with C drivers, including source code, and Merlin+ Windows software.
 Ordering Information:
 <table width="930px" border="1" cellspacing="1" cellpadding="1" style="color:#808080; margin:8px 0px; border:1px solid #ccc;"><tbody><tr><td style="padding:4px 20px; width:360px;">Part Number</td><td style="padding:4px 20px; width:490px;">Description</td></tr><tr><td style="padding:4px 20px;">EXC-1553PMC/Px</td><td style="padding:4px 20px;">MIL-STD-1553 PMC interface board. Supports up to 4 multi function channels</td></tr><tr><td style="padding:4px 20px;">EXC-1553PMC/PxS</td><td style="padding:4px 20px;">MIL-STD-1553 PMC interface board. Supports up to 4 single function channels.</td></tr><tr><td style="padding:4px 20px;">EXC-1553ccPMC/Px</td><td style="padding:4px 20px;">MIL-STD-1553, conduction cooled, interface board. Supports up to 4 multi function channels.</td></tr><tr><td style="padding:4px 20px;">EXC-1553ccPMC/PxS</td><td style="padding:4px 20px;">MIL-STD-1553, conduction cooled, interface board. Supports up to 4 single function channels</td></tr><tr><td colspan="2" style="padding:6px 20px;"> Note:  <div style="text-indent: 24px; display: inline !important;">“x” specifies the total number of dual redundant 1553 channels ordered: 1, 2, 3 or 4 </div>"-001" added to the end of the part number specifies conformal coating option. "-E" added to the end of the PMC part number only specifies extended temperature (-40° to +85°C) option.</td></tr></tbody></table>
