EXC-1553mPCIe/P1

型号EXC-1553mPCIe/P1
制造商 Excalibur Systems
描述
应用 MIL-STD-1553
服务支持

单价（含13%增值税)
销售价： 来电联系

供货信息

线上库存 0
线下库存联系我们

单位

线上库存	0
线下库存	联系我们
单位

商品详情

品牌Excalibur Systems
所属分类板卡
商品编号G58B7D84F27834
型号EXC-1553mPCIe/P1

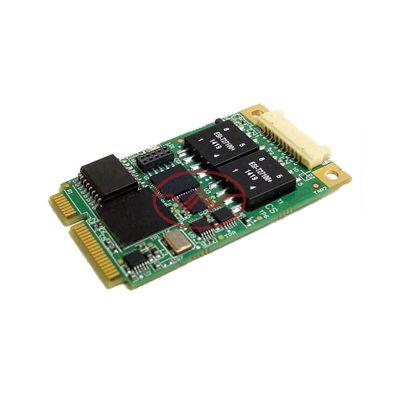

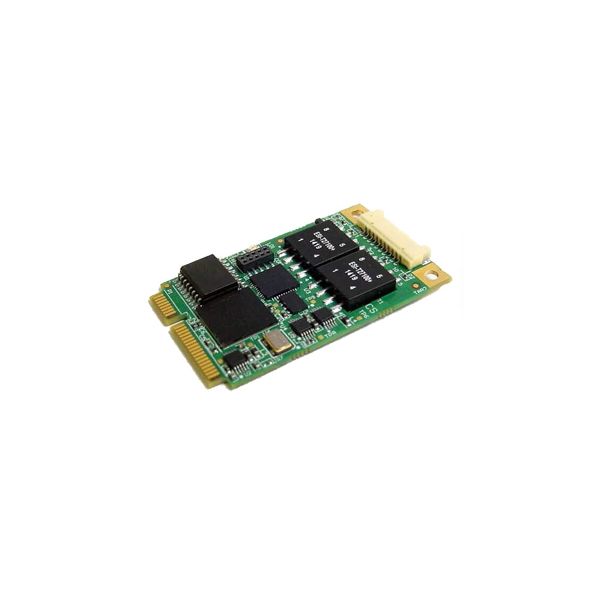

This card’s small size and suitability for Mini Card compatible computers make it a complete solution for developing, testing, integrating 1553 interfaces and for performing system simulation of the MIL-STD-1553 bus, both in the lab and in the field.
 Multi Function
 Each channel of the EXC-1553mPCIe/P1 operates simultaneously as a Bus Controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. The card supports error injection and detection. The card’s small size and compatibility with notebook computers make it the perfect solution for performing system simulation of the MIL-STD-1553 bus, in the lab and in the field.
 Single Function
 Each channel of the EXC-1553mPCIe/P1S operates either as a Bus Controller, Remote Terminal, or Bus Monitor.
 The EXC-1553mPCIe/P1 card is supplied with C drivers, including source code, Merlin+ Windows software and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application.
 Ordering Information:
 <table width="930px" border="1" cellspacing="1" cellpadding="1" style="color:#808080; margin:8px 0px; border:1px solid #ccc;"><tbody><tr><td style="padding:4px 20px; width:360px;">Part Number</td><td style="padding:4px 20px; width:490px;">Description</td></tr><tr><td style="padding:4px 20px;">EXC-1553mPCIe/P1</td><td style="padding:4px 20px;">Single channel 1553 Mini PCI Express Card MIL-STD-1553 multi function interface card for Mini Card compatible notebooks.</td></tr><tr><td style="padding:4px 20px;">EXC-1553mPCIe/P1S</td><td style="padding:4px 20px;">Single channel 1553 Mini PCI Express Card MIL-STD-1553 single function interface card for Mini Card compatible notebooks.</td></tr><tr><td style="padding:4px 20px;">EXC-1553mPCIe/P1M</td><td style="padding:4px 20px;">MIL-STD-1553 monitor only channel for Mini Card compatible notebooks.</td></tr><tr><td colspan="2" style="padding:6px 20px;"> Note:  <div style="text-indent: 24px; display: inline !important;">"-E"     added to the end of the part number specifies extended temperature (-40° to +85°C) option. </div>"-R"     added to the end of the part number specifies ruggedized cable "-001"  added to the end of the part number specifies conformal coating option.</td></tr></tbody></table>
