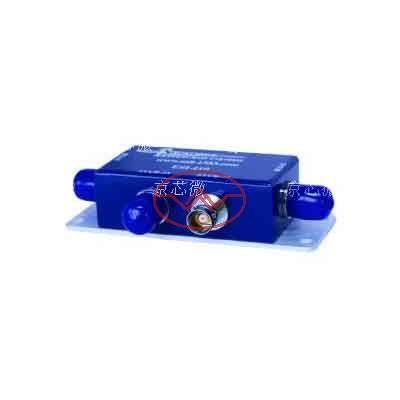

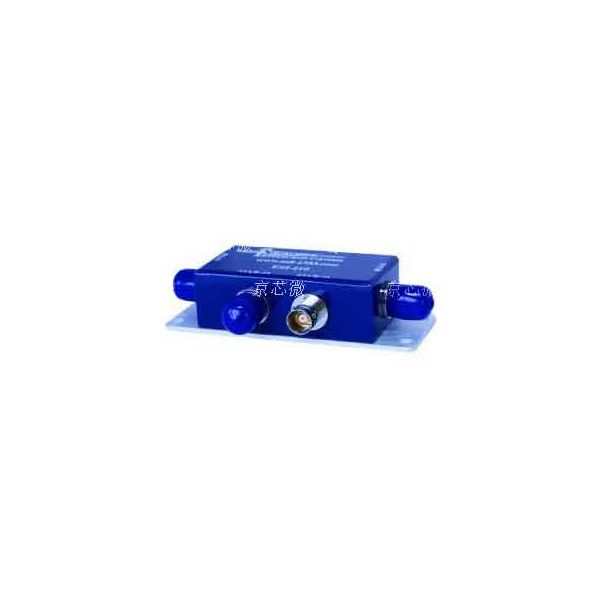

ESI-210

型号ESI-210
制造商 Excalibur Systems
描述MIL-STD-1553B 2子线盒式耦合器
应用 MIL-STD-1553
服务支持

单价（含13%增值税)

销售价： 来电联系

供货信息

线上库存	联系我们
线下库存	联系我们
单位

商品详情

品牌Excalibur Systems
所属分类总线耦合器
商品编号G57BBF19165251
型号ESI-210

<table width="850" height="auto" style="margin: 20px 40px; border: 1px solid rgb(204, 204, 204); border-image: none; background-color: rgb(255, 255, 255);" border="1" cellspacing="1" cellpadding="1"><tbody><tr><td style="padding: 4px 10px;" colspan="2">ELECTRICAL</td></tr><tr><td style="padding: 4px 10px; width: 300px;">FREQUENCY RANGE</td><td style="padding: 4px 10px; width: 550px;">75 kHz ~1.0 MHz</td></tr><tr><td style="padding: 4px 10px;">COMMON MODE REJECTION</td><td style="padding: 4px 10px;">- 45.0 dB MIN. @ 1.0MHz.</td></tr><tr><td style="padding: 4px 10px;">DROOP</td><td style="padding: 4px 10px;">20% MAX. (250kHz)</td></tr><tr><td style="padding: 4px 10px;">OVERSHOOT & RINGING</td><td style="padding: 4px 10px;">+/ - 1.0V PEAK</td></tr><tr><td style="padding: 4px 10px;">TRANSFORMER RATIO</td><td style="padding: 4px 10px;">1:1.41 +/- 3%</td></tr><tr><td style="padding: 4px 10px;">POWER RATING</td><td style="padding: 4px 10px;">2 - WATT MIN. FOR ISOLATION RESISTORS</td></tr><tr><td style="padding: 4px 10px;">DIELECTRIC STRENGTH</td><td style="padding: 4px 10px;">500 Vrms BETWEEN CABLE SHIELD AND BUS AND STUB CONDUCTORS AND BETWEEN BUS AND STUB CONDUCTORS</td></tr><tr><td style="padding: 4px 10px;">INSULATION RESISTANCE</td><td style="padding: 4px 10px;">GREATER THAN 1000 MEGOHMS AT 250 VDC BETWEEN CONDUCTORS AND SHIELD</td></tr><tr><td style="padding: 4px 10px;" colspan="2">MECHANICAL CONFORM TO MIL - STD - 454</td></tr><tr><td style="padding: 4px 10px; width: 300px;">CONNECTORS</td><td style="padding: 4px 10px; width: 550px;">BJ77(TROMPETER OR EQUIV)</td></tr><tr><td style="padding: 4px 10px;">MATING CONNECTOR</td><td style="padding: 4px 10px;">PL75(TROMPETER OR EQUIV)</td></tr><tr><td style="padding: 4px 10px;">ENCLOSURE</td><td style="padding: 4px 10px;">ALUMINUM .050 THK</td></tr><tr><td style="padding: 4px 10px;">MOUNTING PLATE</td><td style="padding: 4px 10px;">ALUMINUM .080 THK</td></tr><tr><td style="padding: 4px 10px;">CASE COATING</td><td style="padding: 4px 10px;">BLUE ENAMEL (POWDER COATED)</td></tr><tr><td style="padding: 4px 10px;" colspan="2">ENVIRONMENTAL</td></tr><tr><td style="padding: 4px 10px; width: 300px;">OPERATING TEMPERATURE</td><td style="padding: 4px 10px; width: 550px;">- 55 ℃ to +125 ℃</td></tr></tbody></table><a href="article-news_pinpaixinwen-131.html" target="_blank">
<img style="margin: 10px 40px; padding-bottom: 20px;" src="../public/images/46/9d/d8/a38ca7e4e718e2699d3a3f864c72908055b46995.jpg"></a>

ESI-210
